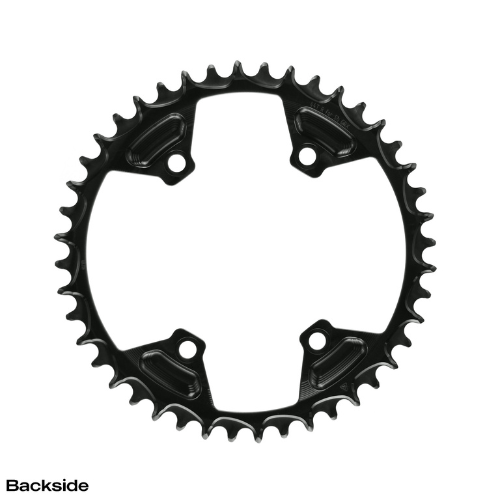

Chnrng 1s 46T Rnd BCD SHI GRX

TECHNICAL SPECIFICATIONS
Offset: 38T-50T 2,0mm
Weight: 38T- 60g; 40T- 63g; 42T- 66g; 44T- 75g; 46T- 86g; 48T- 92g; 50T- 99g
Diameter: 38T- 161,3mm; 40T- 171mm; 42T- 179mm; 44T- 187mm; 46T- 195,5mm; 48T- 202,4mm; 50T- 210,4mm
Technology: Narrow Wide chainring teeth (1-speed)
Material: Aluminum 7075-T6
Surface coating: Anodizing

COMPATIBILITY
For Shimano 11sp. and 12sp. 110 mm Asymmetrical bolt circle diameter 4 holes cranks: GRX 11speed FC-RX810-1/-2, FC-RX600-1/-2; GRX 12speed FC-RX820-1/-2, FC-RX610-1/-2
Chainrings you may use the following chains: all 10sp, 11sp, 12sp Shimano; 10sp, 11sp, 12sp SRAM; Campagnolo; KMC chains
NOTE: the chainring 1X (1-speed, single) is not compatible with 2X (2-speed, double setups)
Shifting: 1x12 and 1x11 speed (only for use with single system without front derailleur)


DESCRIPTION
ALUGEAR chainrings are some of the lightest chainrings on the market. Using our experience and vigorous testing, we tweaked the arm design and strategically machined the chainrings so that only minimal sacrifices were made in impact strength in exchange for large gains in weight reduction
The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time
A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations, such as 10, 11, and 12-speed drives.
The tooth profile is specially designed for use with Road and MTB chains
ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design and low weight


RECOMMENDATIONS
We recommend the use of a clutch system rear derailleur for the best chain security
It is also a good idea to use a new chain with your new ALUGEAR chainring


INSTALLATION INSTRUCTIONS
The chainring installation scheme
