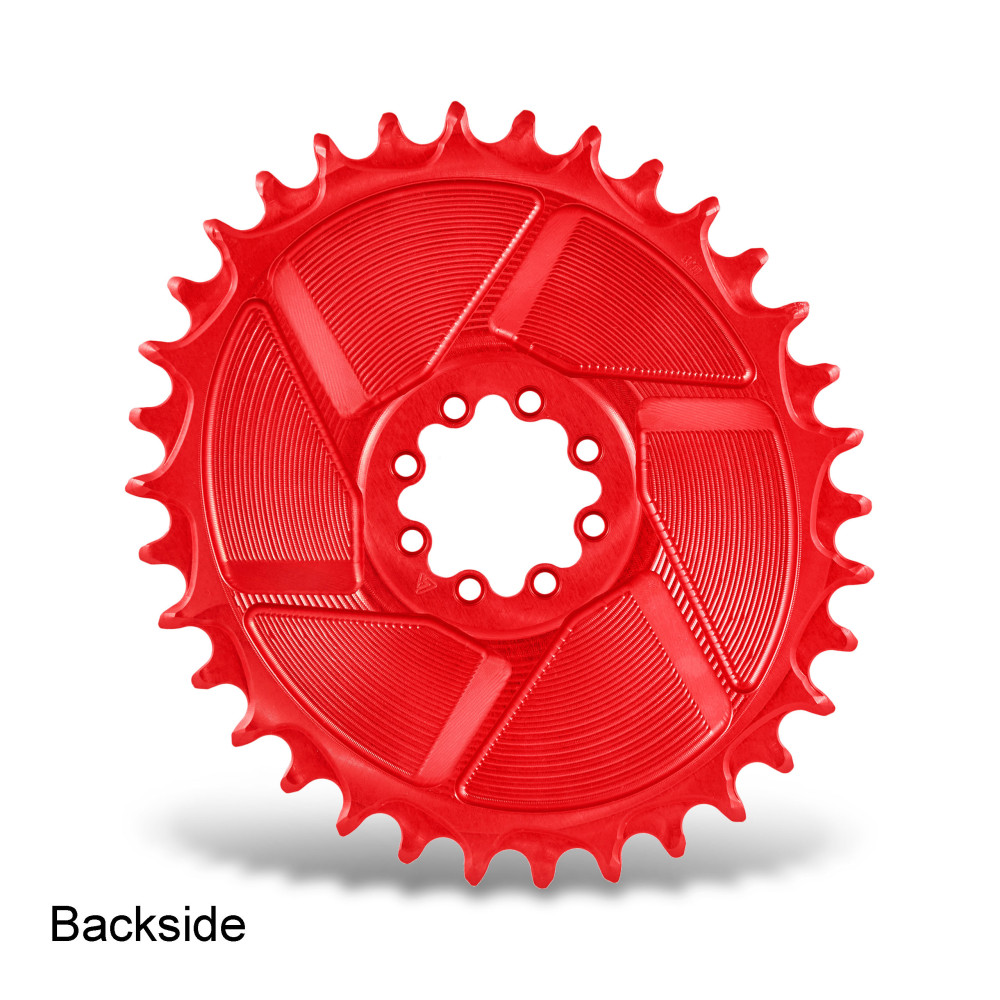

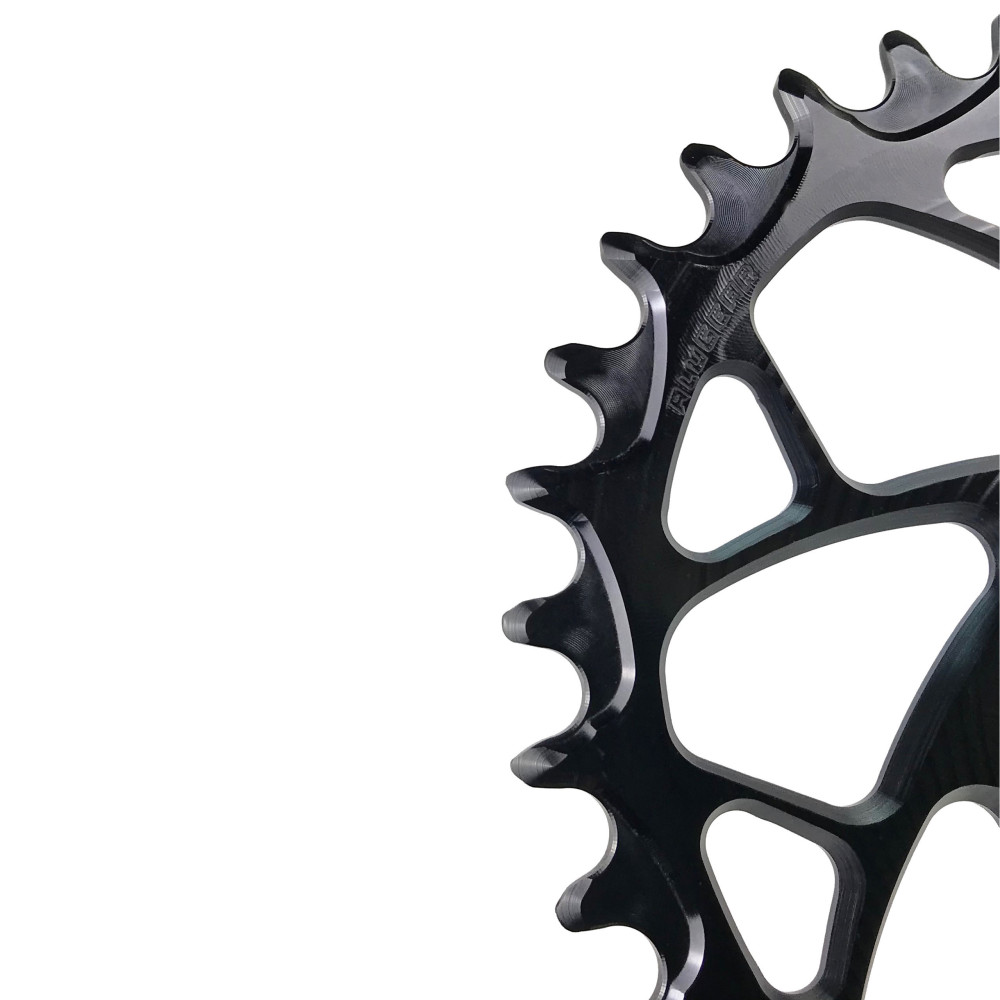

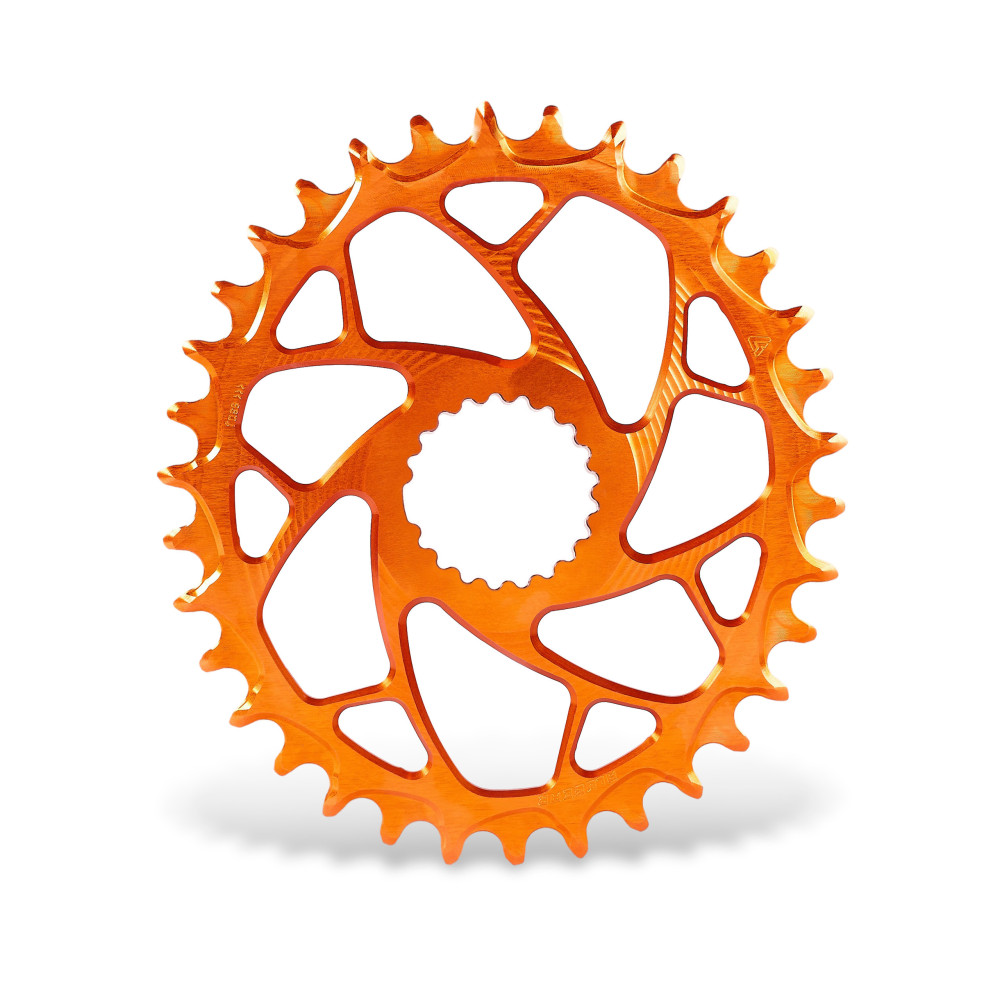

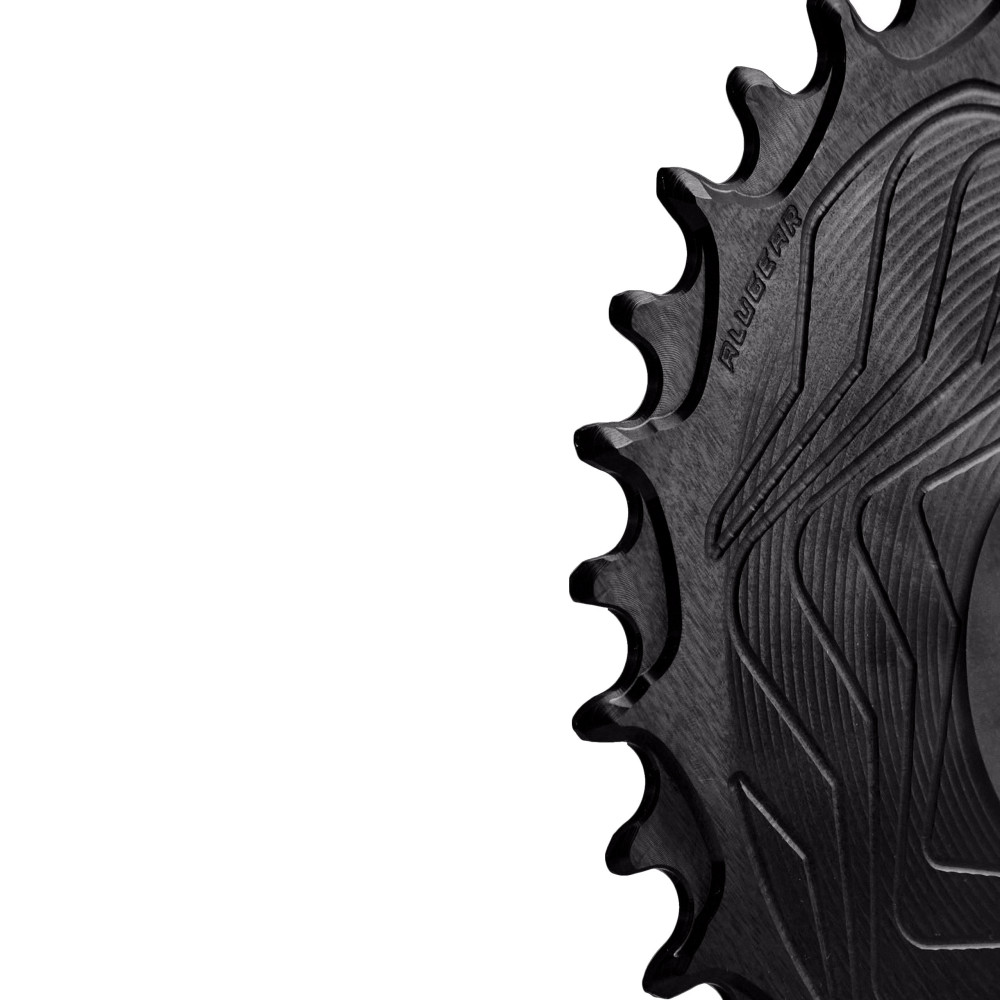

The original design ALUGEAR chainring “AERO MTB”

TECHNICAL SPECIFICATIONS
Offset: BOOST; 26T-36T 3,0mm; 38T 2,0mm
Weight: 26T- 46g; 28T- 50g; 30T- 54g; 32T- 59g; 34T- 65g; 36T- 72g; 38T- 78g
Diameter: 26T- 120mm; 28T- 128mm; 30T- 136mm; 32T- 144mm; 34T- 152mm; 36T- 162mm; 38T- 170mm
Timing: 108° (top dead center)
Ovality: 12%
Material: 7075-T6 aluminum
Made: CNC milling
Surface coating: Anodizing


COMPATIBILITY
For cranks MTB SRAM 3 holes Direct Mount axle type: GXP, DUB, BB3.
For Cane Creek eeWing cranksets
Chainrings should use with Boost rear hubs 148mm (O.L.D. frames)
MTB chainrings you may use the following chains: all 10sp, 11sp, 12sp SRAM Eagle and 10sp, 11sp, 12sp Shimano chains


INFORMATION
ALUGEAR chainrings are some of the lightest chainrings on the market. Using our experience and vigorous testing, we tweaked the arm design and strategically machined the chainrings so that only minimal sacrifices were made in impact strength in exchange for large gains in weight reduction
The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time
A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations, such as 10, 11, and 12-speed drives. The Narrow Wide teeth guide the chain reliably
The tooth profile is specially designed for use with MTB chains
ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design


RECOMMENDATIONS
Use the standard chainring bolts supplied with the cranksets
We recommend the use of a clutch system rear derailleur for the best chain security
It is also a good idea to use a new chain with your new ALUGEAR chainring


INSTALLATION INSTRUCTIONS
The chainring installation scheme
